Galaxy Series
Ultra-lightweight Solar Panel
-
Feather-Light, Steel-Tough
-
Ideal for C&I Roof Tops/ Patio/Pergola/Shed & Solar Trailer/Flat Roof
The Galaxy Series is a lightweight solar panel solution designed for industrial and commercial roofs. With an ultra-lightweight design, Galaxy is especially ideal for low load-bearing and poor waterproof roofs while ensuring power generation efficiency. This lightweight solar panel system ensures excellent durability against harsh weather while maintaining high power generation efficiency. Easy to install, it helps save both time and labor costs.
-
Ultra-lightweight
-
Excellent Self-cleaning Ability
-
Strong Wind and Hail Resistance
-
IP67 Ingress Protection Rating
-
Extreme Lightweight
Lightweight Design
Effectively Reduces Roof Load Pressure
Suitable for Various Application Scenarios
-
Safe & Reliable
Wind-resistance in Multiple Scenarios
Excellent Self-cleaning Ability

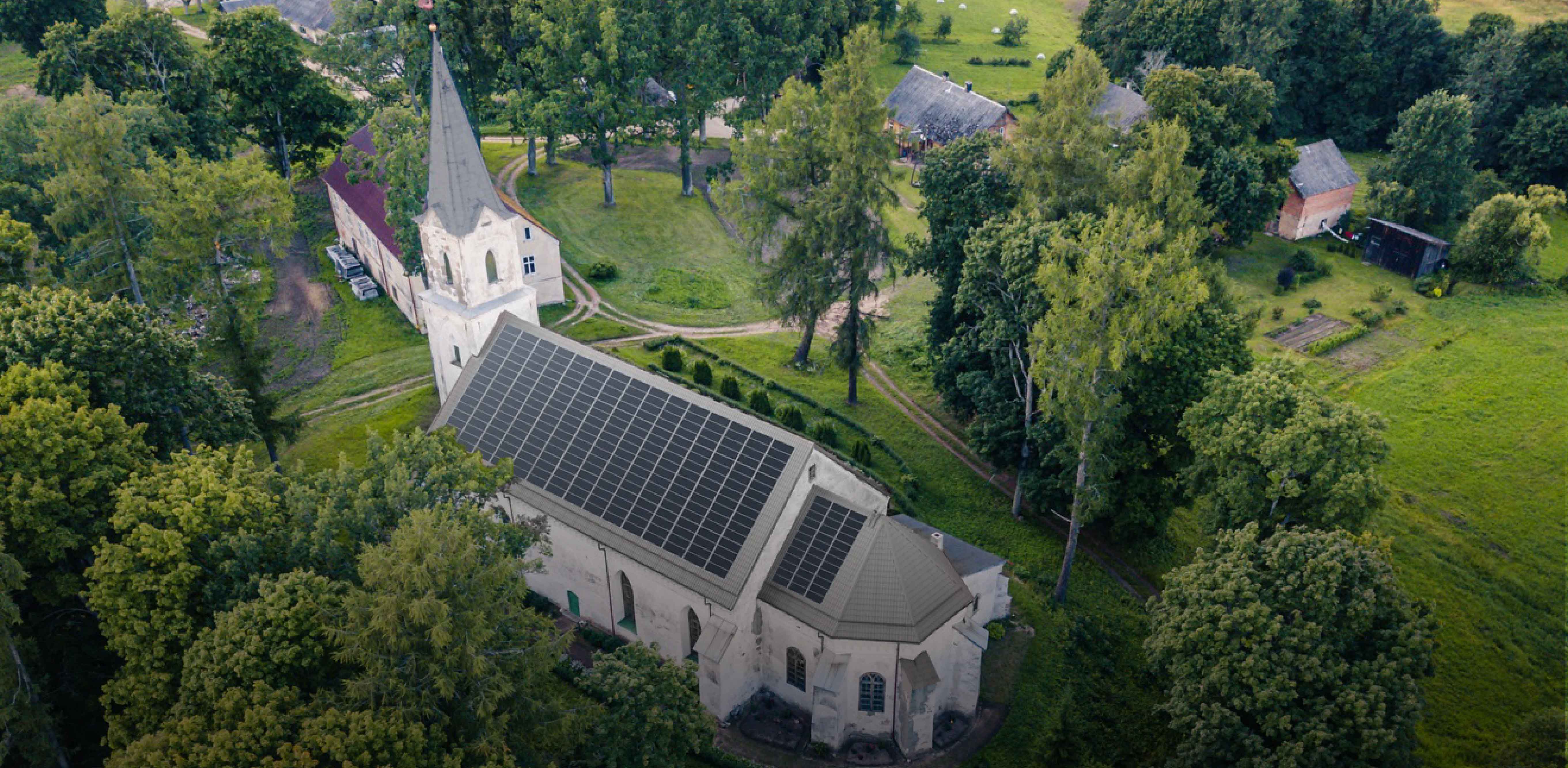

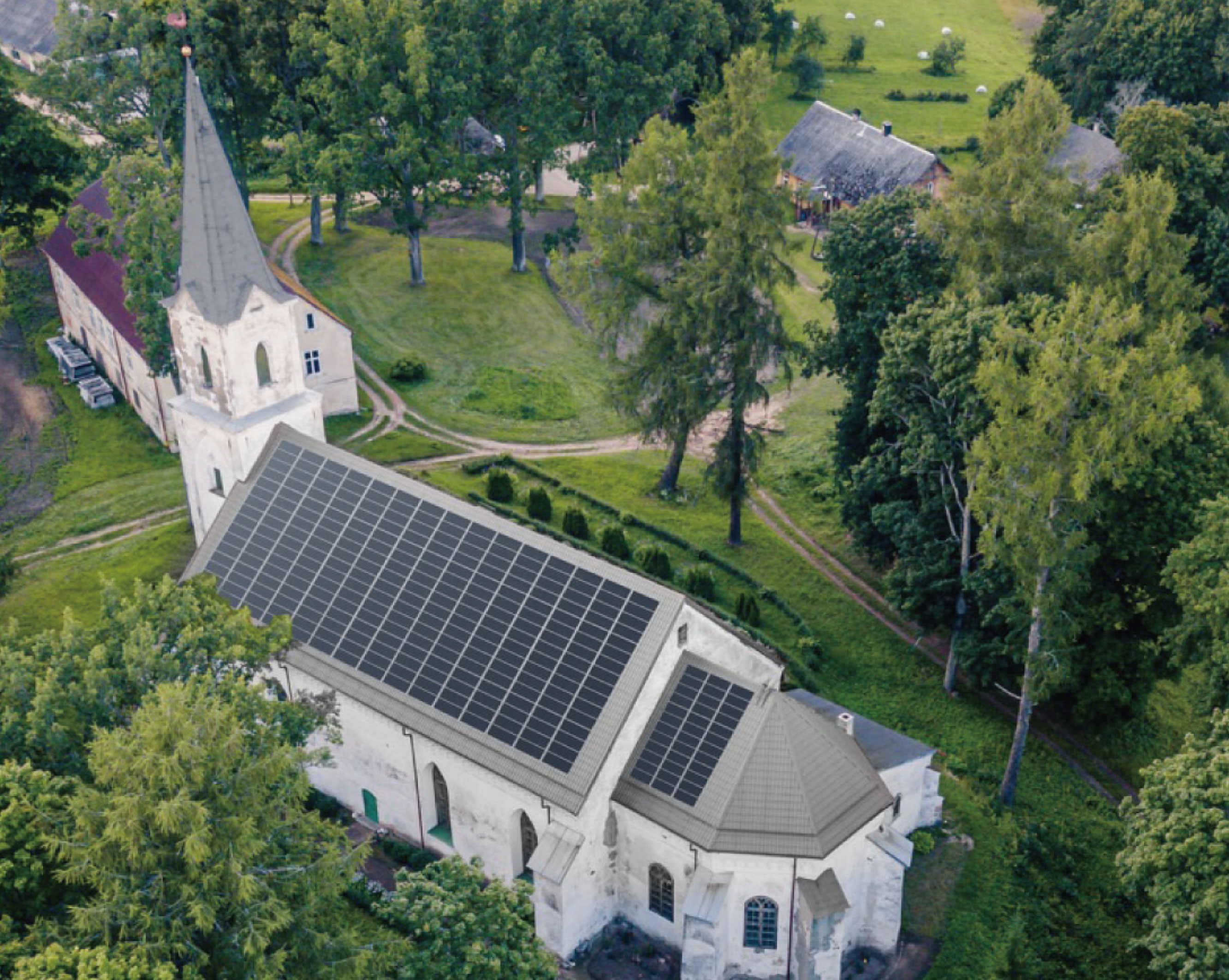

Multiple Application Scenarios
-

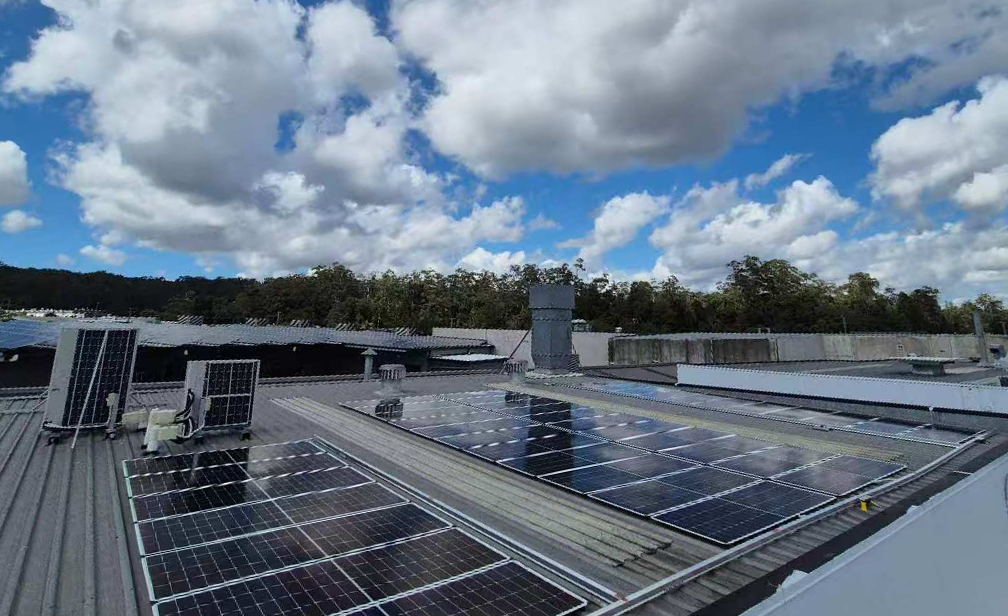

Metal Roof
-

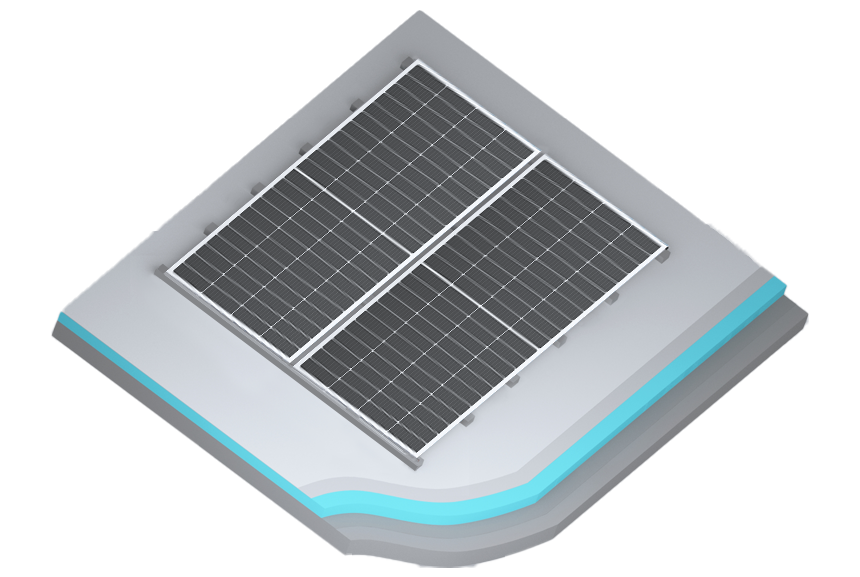

Flat/Trapezoidal Roof
-

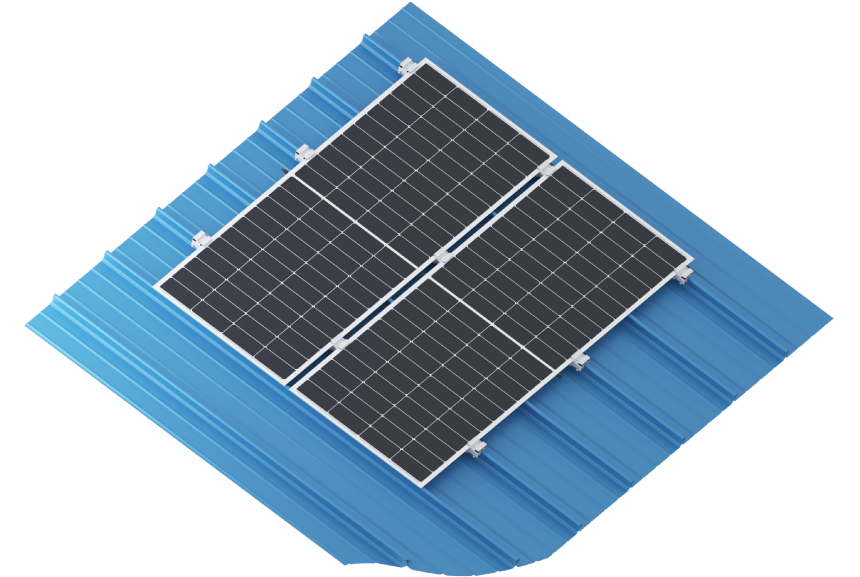

The Galaxy lightweight solar panels significantly reduce load pressure on concrete roofs. With both clamp fixing and adhesive bonding options available, these lightweight solar panel systems adapt flexibly to various complex substrates, making them an ideal solution for metal roofs.
-
Galaxy Ultra adopts hot-air welding installation method, achieving tight sealing and firm bonding at panel joints through thermal fusion bonding, making them an ideal solution for membrane roofs.

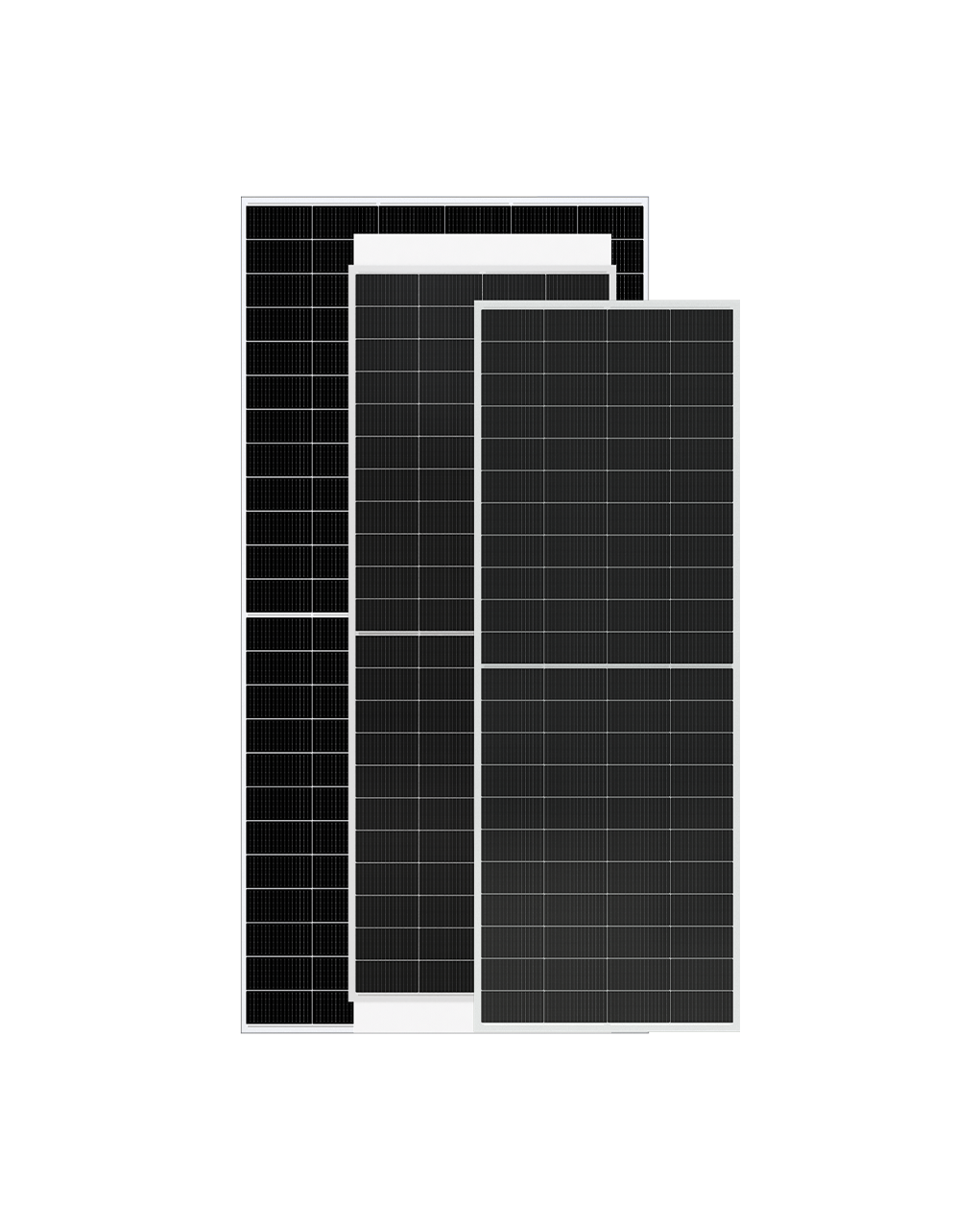

Technical Specs
-
Galaxy Plus 355W
-
Galaxy Plus 360W
-
Galaxy Plus 580W
-
Galaxy Ultra 360W
-
Galaxy Ultra 365W
-

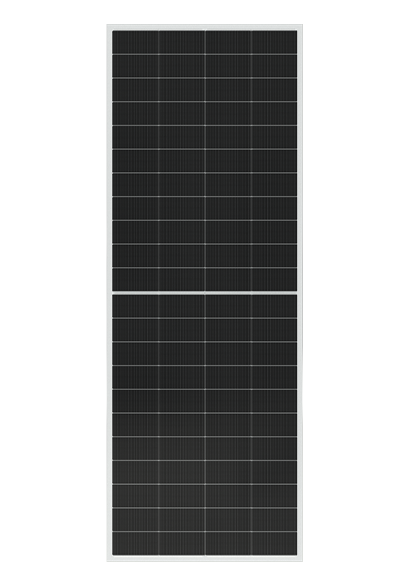

BMT-G4/088AGalaxy Plus 355W
-
Power
355W
-
Size
2138±2*780±2*5±1mm
-
Weight
9.3±0.7kg
-
Cell
N-Type TOPCon Half Cells (88pcs)
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
213W/㎡
Download -
-
BMT-G4/088AGalaxy Plus 360W
-
Power
360W
-
Size
2138±2*780±2*3.7±1mm
-
Weight
9.3±0.7kg
-
Cell
N-Type Topcon Half Cells(88pcs)
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
216W/㎡
Download -
-
BMT-G5/144AGalaxy Plus 580W
-
Power
580W
-
Size
2322±2*1133± 2 *28.5±1mm
-
Weight
19.5±1kg
-
Cell
N-Type TOPCon Half Cells (144pcs)
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
220W/㎡
Download -
-

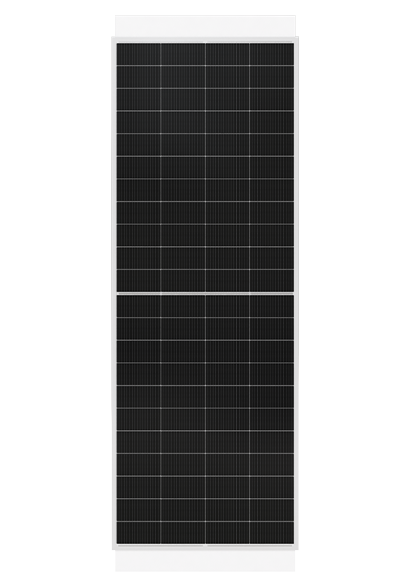

BMT-G3/088AGalaxy Ultra 360W
-
Power
360W
-
Size
2335±6*777±2*3.5±1mm
-
Weight
10.2±0.7kg
-
Cell
N-Type TOPCon Half Cells (88pcs)
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
198W/㎡
Download -
-
BMT-G3/088AGalaxy Ultra 365W
-
Power
365W
-
Size
2335±6*777±2*3.5±1mm
-
Weight
10.2±0.7kg
-
Cell
N-type Topcon
-
Load Capacity
2400Pa
-
Protection Class
II
-
Fire-resistant Class
C
-
Power/㎡ (W/㎡ )
201W/㎡
Download -
FAQ
-
QDoes Galaxy require grounding?
Grounding depends on mounting materials:
PPO tubes: Not required
Metal supports: Required
-
QWhat is the purpose of elevating strips in Galaxy clamp installation?
Elevating strips optimize roof clearance by:
Reducing panel-to-rib gaps
Minimizing wind-load vibrations
-
QDoes GoodWe supply the adhesive or can we source it separately?
For guaranteed performance and warranty coverage of your lightweight solar panel, we:
Pre-qualify adhesives through rigorous testing
Provide recommended product specifications
-
QIs Galaxy flexible?
The Galaxy lightweight solar panel has a minimum bending radius of 2000mm (long edge) with guaranteed cell integrity. While we don't recommend bent installations, customized solutions can be discussed for special projects.
